31.80308.63
Hydraulic hinge EVO EV 835E51 with integrated door closer, self-closing from an opening angle of 160°, aluminium, anodized 20 micron, Glass thickness 8 - 19 / 21.52 mm, glass/glass, DIN left
Weitere Ausführungen
Allgemeine Eigenschaften
| Material | aluminium |
| Ausführung | anodized 20 micron |
| Montage | glass/glass, DIN left |
| Glasstärke | 8 - 19 / 21.52 mm |
| Verkaufseinheit (VE) | Stück |
| Tragkraft | 100 kg/pair |
Produkt-Information
- further finishes on request
Bezeichnung

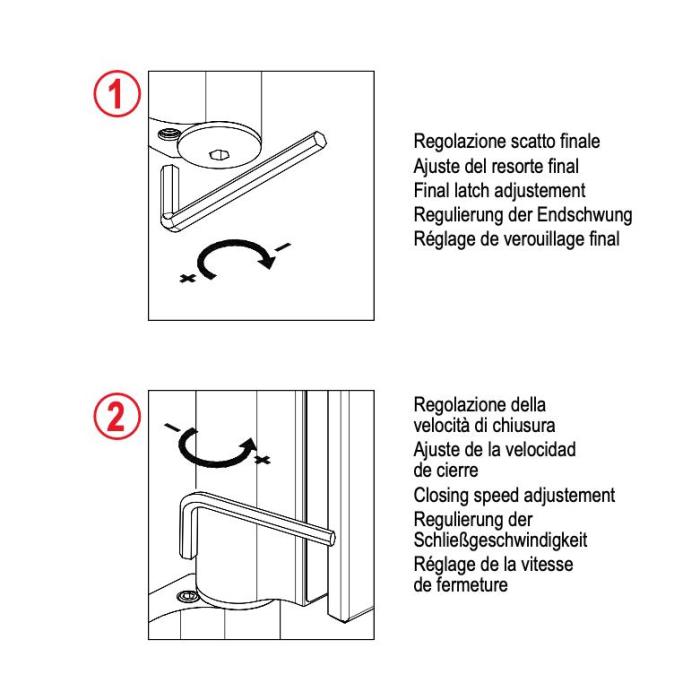

with adjustable closing speed, with constant braking control, with 180° locking, min. door width 800 mm, max. door width 1000 mm, for temperatures from -15°C to + 40°C. The hinge has a pre-tension, therefore a closing stop is required
-
